Model PRO 800 maximum comfort, outstanding ergonomics and technical characteristics

The Model PRO 800  (upper or bottom instruments hose delivery)
provide an exceptional comfort for you and your patients either when it comes to a regular preventive check-up or to a complex surgical procedure. Combining refined ergonomics and progressive design, the Model Pro 800 units are a perfect synthesis of functionality and comfort.

Dentist’s element Model Pro 800

The dental unit is enhanced with the latest technologies available at the dental market: touch screen display, electronic cooling water amount adjustment system, torque adjustment for brushless micromotors and many more.
It is possible program up to ten customized handpiece settings
into the unit.

Use your own tablet to control your dental unit and Instruments. Well known platforms like Android or IOS are fully supported. Data backup on iCloud. Quick access to patient data, X-rays, photos. Automatic update. Unlimited amount of users. User friendly interface. Updates are automatically sent through Diplomat app.

Exclusive Comport

Having been designed with dentist and patient comfort in mind, the unit’s design provides an extra legroom,  because we know that keeping a comfortable relaxed posture is very important for both dentist and patient.

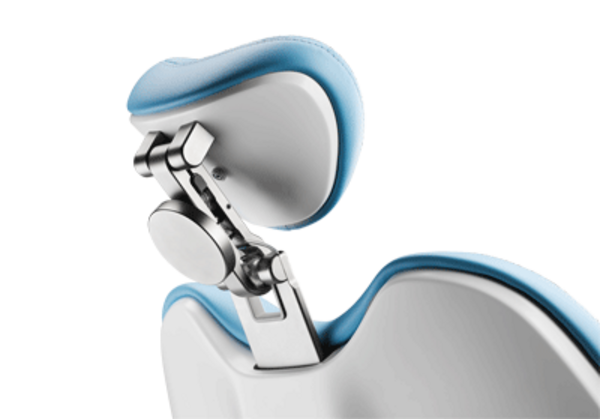

Headrest with 3D ball joint

Stainless steel headrest with 3D ball joint enabling 3-axis positioning for an unparalleled comfort even during complex dental treatments.


The Diplomat dental units are made to meet the most demanding requirements of dental professionals and to provide an exceptional working comfort for dentist and assistant.

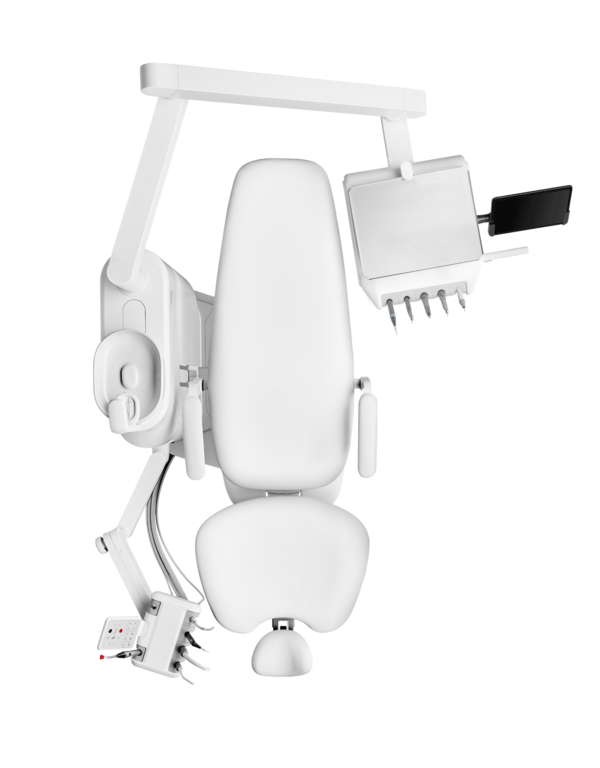

Model PRO 800

The Diplomat Model PRO 800 are six instruments position stationary dental units. Assistant’s element can be configured with five handpieces. There is also an option of installing an intra-oral camera as an additional sixth instrument. Spittoon block-mounted chair design allows a vertical chair side lift for more comfortable and ergonomic patient positioning during the treatment. Programmable chair allows customizing and saving up to eight custom modes for each user. Unit’s components (upholstery, spittoon bowl, etc.) are available in a wide range of colors giving our clients the opportunity to create a unique interior in their dental office.

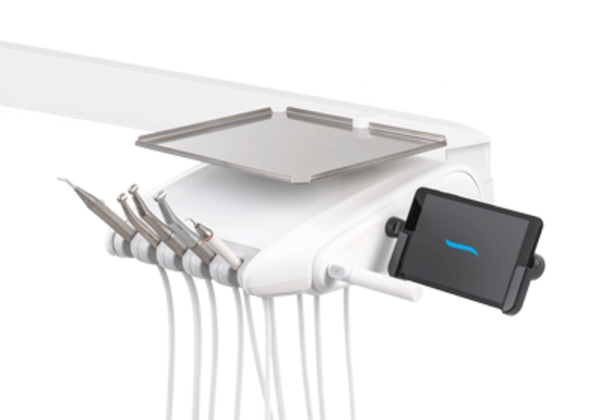

Dentist’s element Model PRO 800

The arm of a dentist’s element with an integrated electro-pneumatic brake enables easy and smooth repositioning. The arm is available in a standard or shortened variant. Touch screen display with intuitive menu structure allows effortless navigation, control and adjustment of handpieces
and unit’s parameters.

Dental Light Xenos & Faro

Diplomat shadow less LED-Light is specifically designed for modern dentistry. LED Dental Light features 2 light intensity modes and full electronic control via either keyboard on a dentist‘s
/assistant‘s /element,
or a foot controller.

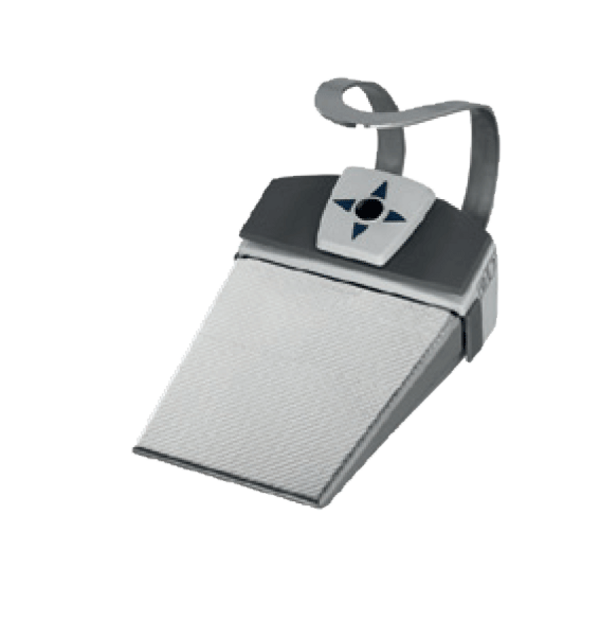

Foot Controllers

Both dental units are fully compatible with the NOK and UNO foot controllers, enabling full electronic control of the unit, chair and handpieces. Both models feature programmable buttons and are available in wired and wireless version.

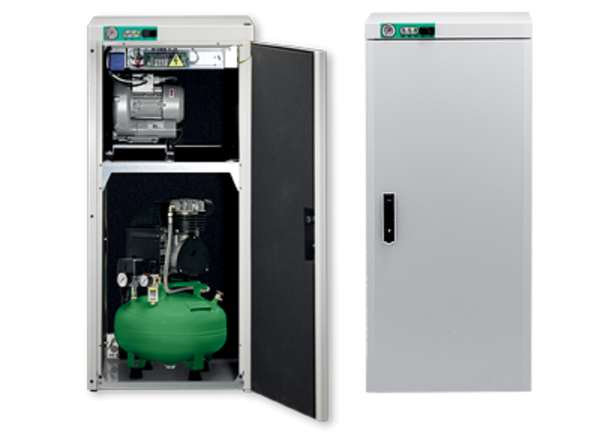

We offer our new range of Diplomat dental compressors for your
dental practice.

Technical data

Dental unit


Supply voltage

230V ± 10%


50 Hz ± 2 %

Max. power consumption

1900 VA + 10%

Input pressure of air

from 0,45 to 0,8 MPa

Input pressure of water

from 0,3 to 0,6 MPa

Dental unit netto weight

145 kg + max. 20 kg according to version

Dental unit brutto weight

210 kg + max. 35 kg according to version

Type of protection against electric shock

Class I equipment

Degree of protection against electric shock

applied parts of  B type

Degree of protection by cover


Temperature of water for the cup

35 ± 5 °C (with heater fitted)

Max. recommended load of light arm tray table

1,5 kg

Max. recommended load of dentist’s panel tray table:

•      for stainless plate 180x280 mm

•      for stainless plate 290x370 mm


0,5 kg

1,5 kg


Type of operation

continuous with intermittent loading, corresponding to the common dental practice.



Range of the height of the seat above the floor

385 mm – 825 mm ± 15 mm (DA270,DA280)

320 mm – 825 mm  ± 15 mm (DA370,DA380)

Range of the tilting of the backrest from vertical plane

20° ± 2° to 90° ± 2° (DA270,DA280)

13° ± 2° to 97° ± 2° (DA370,DA380)

Range of the tilting of the seat from horizontal plane

3° to 21° ± 2° (DA370,DA380)

Chair vertical movement time (from min. to max.)

maximum 20 seconds

Backrest movement time (from min. to max.)

maximum 18 seconds

Seat tilt duration

maximum 8 seconds

Loading capacity of the chair (EN ISO 7494-1)

maximum 200 kg

Chair weight netto DA270,DA280

60kg + max. 5 kg according to version

Chair weight brutto DA270,DA280

110 kg + max. 20 kg according to version

Chair weight netto DA370,DA380

65kg + max. 5 kg according to version

Chair weight brutto DA370,DA380

115 kg + max. 20 kg according to version

Operation mode

1 : 16 (cycle e.g. 25sec. run, 400sec. rest)

Noise level of the chair

maximum 54 dB
