DUO

Oil-free compressors Ekom with suction motor, of the range DUO are the source of clean and oil-free compressed air for dental equipment and instruments. Duo, with its design, is suitable for placing in cabinets as a part of dental furniture. The compact connection of the compressor and suction motor in one box saves place and expenses during the installation. It is necessary to abide intermittent operation of the compressor and the suction motor. With regard to their parameters and the tank volume 25 l they are suitable for supplying of one dental unit. According to the inquiries of the client, it is possible to add units for treating air - by filtration, condensing unit or driyer.


Nominal voltage230V/50(60)Hz
Output efficiency70 l/ min./5 bar.
Operation pressure4.5-6 bar
Air tank capacity25 l
Max.prietok odsávačky1100 l/min.
Max. podtlak odsávačky12 kPa
Noice level51 dB(A)
Weight103 kg
Dimensions (w x d x h)550x550x1260 mm

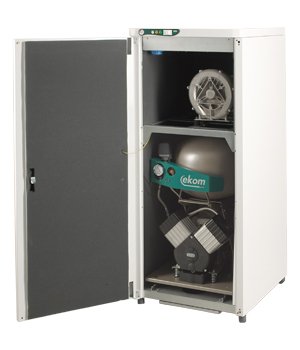

DUO 2V

Oil-free compressors Ekom with suction motor and 2-cylinders motor. With regard to their parameters and the tank volume 25 l they are suitable for supplying of two dental units with suction units. Needs intermittent operation. According to the client´s inquiry, it is possible to add drier Monzum.

Nominal voltage230V/50(60)Hz
Output efficiency140 l/ min./5 bar.
Operation pressure5-7 bar
Air tank capacity25 l
Max.prietok odsávačky1100 l/min.
Max. podtlak odsávačky12 kPa
Noice level53 dB(A)
Weight112 kg
Dimensions (w x d x h)550x550x1260 mm
